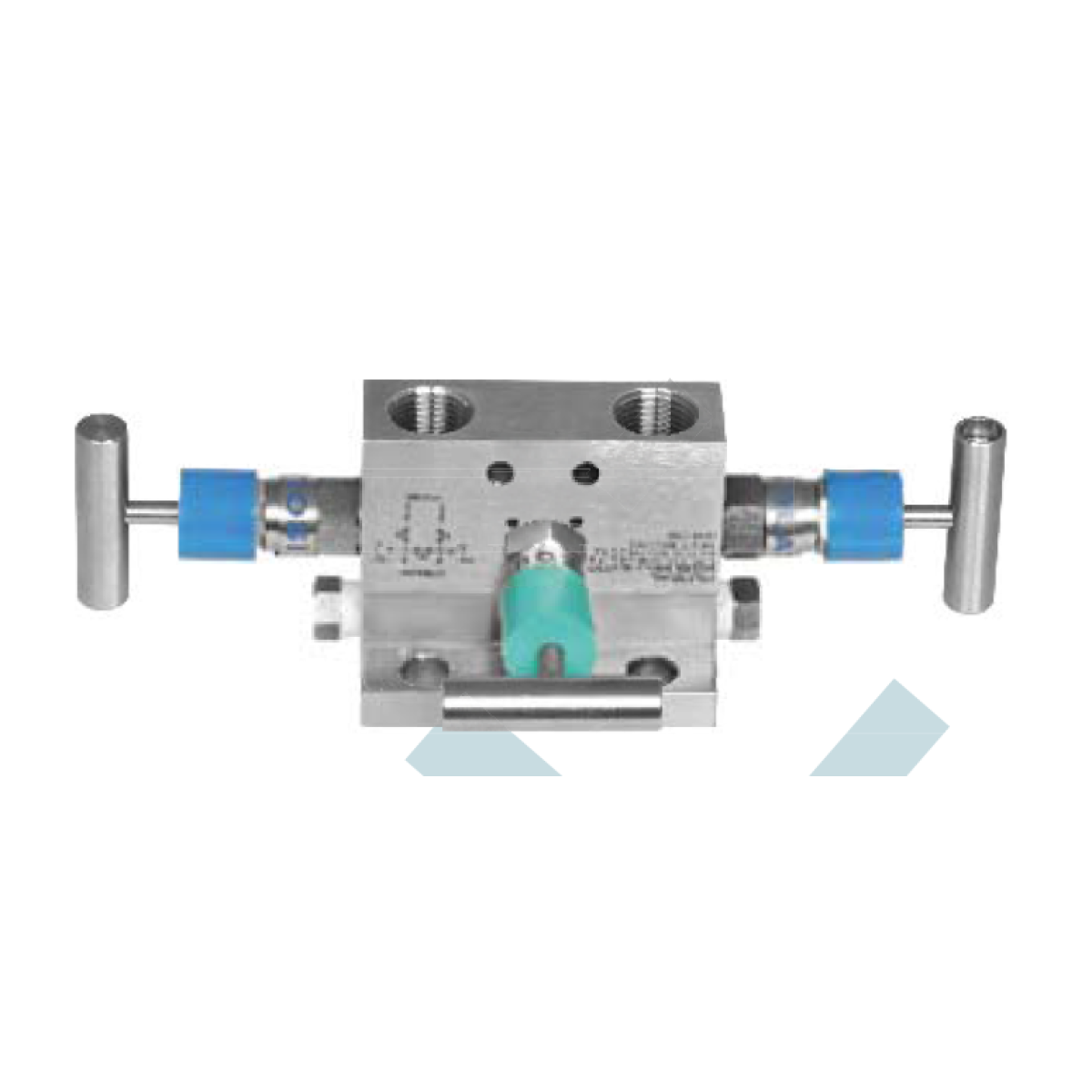

Маніфольд 3-х вентильний прямого кріплення 1/2"NPT (F)

Опис

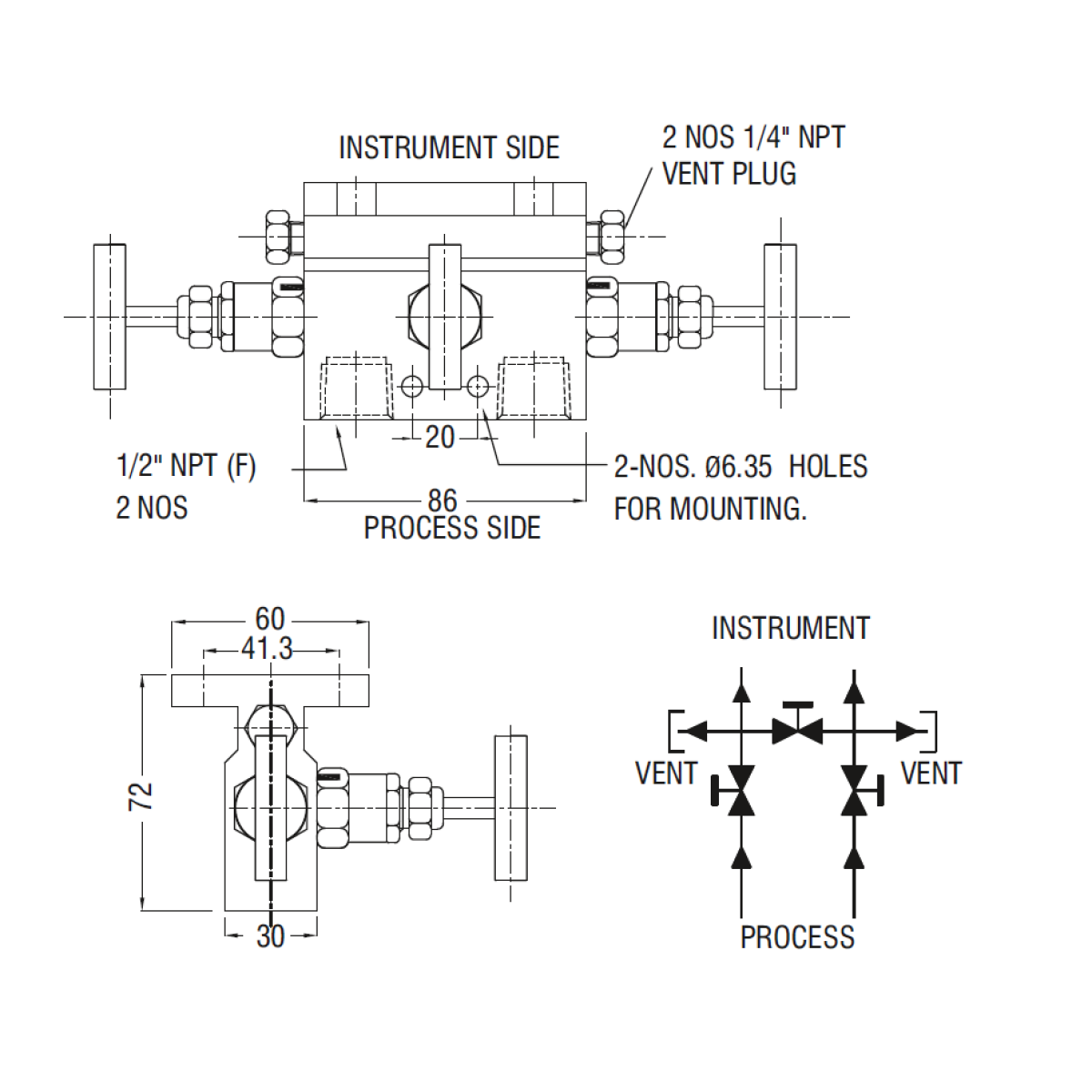

THREE VALVE MANIFOLD DIRECT MOUNТ T TYPE (PIPE X FLANGE) 1/2"NPT (F) 1/4" PLUG VENT 6000 РSI SS 316/316L

Maximum working pressure:
6000 psi (414bar) at 100°F (38°C)
Working temperature:
-65°F (-54°C) to 464°F (240°C)
Diversity of configuration for application to
differential pressure, level and transmitters.
color caps to identify valve function.
100% factory tested.
Heat code traceability.
Material : A479 304, A479 316, A182 GRF 316
Finish: SS Natural, Shot Blast, Zinc Plated
